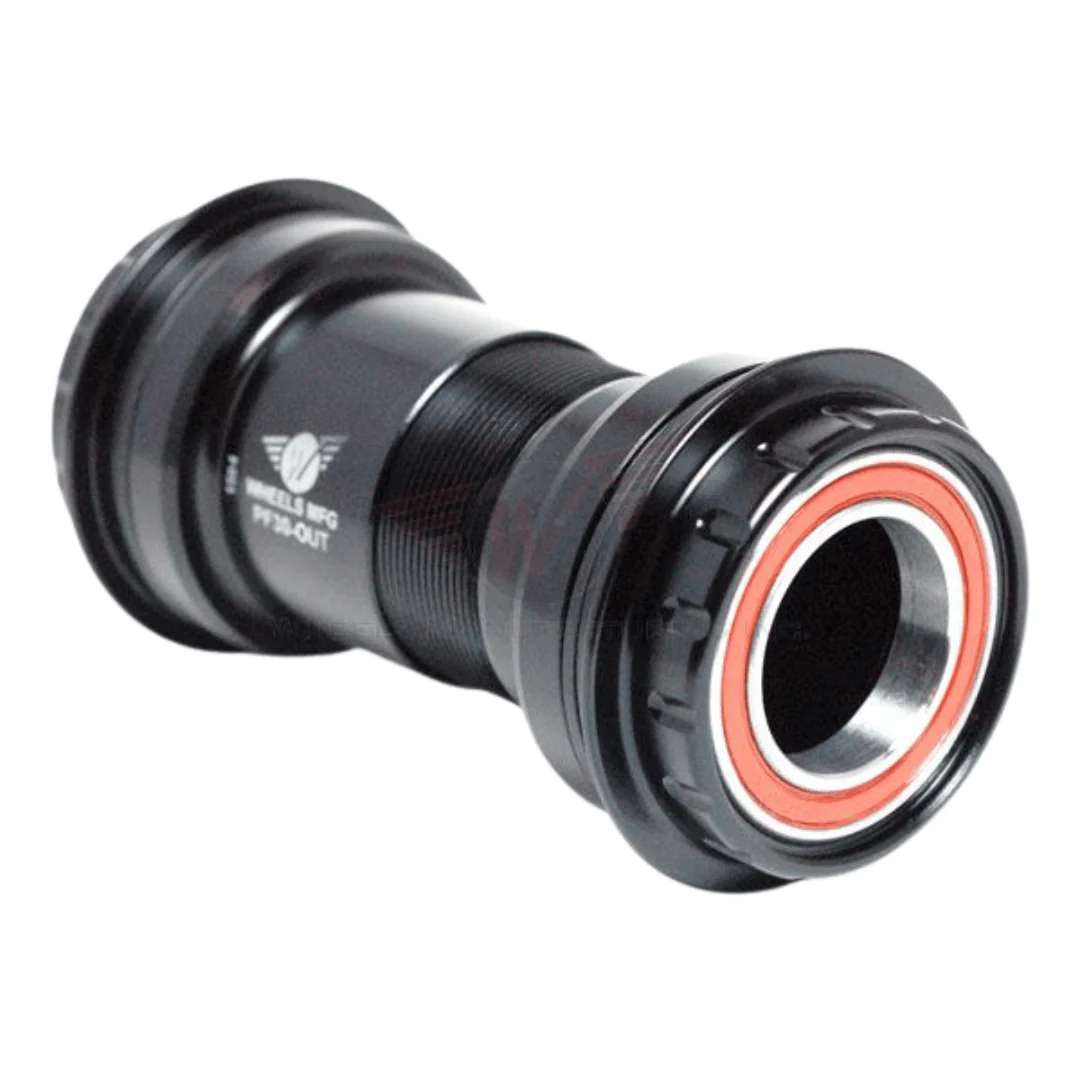

The Wheels Manufacturing PF30 Outboard bottom bracket features machined aluminum cups that thread together, ensuring a stable, creak-free fit within the frame. This design eliminates the movement common in press-fit systems, significantly extending bearing life and simplifying routine maintenance. It provides smoother operation and faster bearing replacement for high-performance cycling.
Specifically engineered for 24mm spindle cranks (such as Shimano Hollowtech II), this bottom bracket installs directly into PF30 frames without the need for additional adapters. Equipped with premium ABEC-5 Angular Contact bearings, it delivers high-load capacity and durability. It is the definitive solution for riders seeking a robust and quiet interface for their PF30 road or mountain frames.
Quick Facts
| Feature | Specification |
|---|---|
| Frame Interface | PF30 (46mm ID Shell) |
| Crank Spindle | 24mm (Shimano Hollowtech II compatible) |
| Bearing Type | ABEC-5 Angular Contact |
| Material | Machined Aluminum (Threaded internal cups) |
| Shell Width | 61mm to 73mm |
| Performance | Creak-free outboard design |
Description
The Wheels Manufacturing PF30 Outboard bottom bracket features machined aluminum cups that thread together, ensuring a stable, creak-free fit within the frame. This design eliminates the movement common in press-fit systems, significantly extending bearing life and simplifying routine maintenance. It provides smoother operation and faster bearing replacement for high-performance cycling.
Specifically engineered for 24mm spindle cranks (such as Shimano Hollowtech II), this bottom bracket installs directly into PF30 frames without the need for additional adapters. Equipped with premium ABEC-5 Angular Contact bearings, it delivers high-load capacity and durability. It is the definitive solution for riders seeking a robust and quiet interface for their PF30 road or mountain frames.
Quick Facts
| Feature | Specification |
|---|---|
| Frame Interface | PF30 (46mm ID Shell) |
| Crank Spindle | 24mm (Shimano Hollowtech II compatible) |
| Bearing Type | ABEC-5 Angular Contact |
| Material | Machined Aluminum (Threaded internal cups) |
| Shell Width | 61mm to 73mm |
| Performance | Creak-free outboard design |
